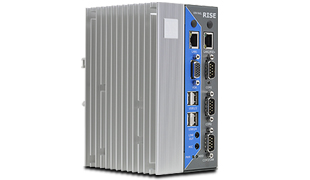

RISE 5300

Q7 based / Intel Atom D525 @ 1.8GHz Industrial Embedded System

RISE 5300
Features
Specifications
Ordering Information
Datasheet
Inquiry this product
View Larger Image
View Appearance
The RISE series of DinRail-PC is designed for harsh industrial environments. It features fanless and cableless, low power consumption and operating over wide temperature ranges. Its reliable design allows to withstand mechanical vibrations, extremely hot or cold environments, power failures or environmental electrostatic discharges.

The RISE series has a modular and reliable design based on the newly emerged standard of Qseven core modules, which supports both Intel's Atom and Via's Nano high performance CPUs.

The RISE series integrates a rich choice of connectivity devices, such as multiple LANs, USB and serial ports, VGA, digital I/O and optionally WLAN, Bluetooth, 3G/GPRS modems and CAN bus to match different industrial application requests.

Read more information about RISE Series.

Features

  • Intel Atom D525 1.8 GHz
  • 1 GB DDR2 SDRAM
  • Express Card 34 slot
  • HD Audio, speaker and microphone
  • HDD/SSD drive bay
  • 2 x Giga LAN
  • Digital and Analogue I/O
  • Option: WLAN, Bluetooth, GPS, 3G/GSM
  • Option: CAN Bus 1Mbit/s

Back to Top
Specifications
Chassis
  Construction
Full size stainless steel, Aluminum cooling plate with fins
  Mounting configuration
DIN Rail
  Cooling system
Passive heatsink, fanless
  LED indicator
Power on/off, HDD access, LAN access
  Expansion slot
* 1 x Mini PCI Express : PCIe x1, USB 2.0 and 1.x
* 1 x Express Card 34 : PCIe x1, USB 2.0 and 1.x
  Dimensions
163 x 111 x 83 mm
  Power switch
Bottom side
  Reset Switch
Bottom side
Back to Top
Hardware
  Processor
Intel Atom D525 @ 1.8GHz
  Cores
2 (4 by Hyperthreading)
  CPU socket
Q7 module
  BIOS
Phoenix - Award BIOS
  Chipset
ICH8M
Back to Top
Memory
  Memory Type
DDR2 1GB
  Memory Socket
Soldered onto Q7 module
  BIOS
8MBit SuperFlash
Back to Top
Video
  VGA Controller
GMA3150 GPU integrated in D525
  Video RAM
Up to 256MB frame buffer
  Interface
VGA
  Resolution
Up to 2048 × 1536 / 32bit
Back to Top
Integrated Devices
  HDD/SSD Bay
1 x 1.8" SATA HDD or SSD
  CF card slot
1 x CF card in True IDE mode
  HD-Audio
Mic-in
1 x Speaker-out
  Real Time clock
Standard
  Keyboard/Mouse
Connect at USB
Internal pin header for PS/2 Keyboard and Mouse
Back to Top
Connectivity
  LAN
2 x RJ45 GigaLAN
* Realtek RTL8111E (support PXE boot)
* Marvell 88E8057 (support PXE boot)
  UBS
4 x USB 2.0, support boot function
  VGA
1 x 15-pin connector
  Com Ports
* 2 x RS232 DB9 male, max. 115.200bps
* 1 x RS232 DB9 male, max. 500.000bps
* 1 x RS422/485 on terminal block
  RS422/485
* Up to 1 Mbit/s (theor. 12 MBit/s)
* RS422 Full-Duplex, RS485 bus mode configured by DIP switch
* RS485 Automatic Transceiver control
* Signals on Terminal Block
  HD-Audio
Line-in (Mic-in)
Line-out ear-jet connectors
  Digital I/O
Terminal Blocks on Top and Bottom side
4 x Output
4 x Input
2 x Counter
2 x ADC
1 x I²C
Back to Top
Power Supply
  Power Input
DC 10-30V
  Power Consumption
Min 17W
Environment
  Operating Temp.
−20° to +55°C
  Storage Temp.
−20° to +80°C
Supported OS
  Microsoft
Windows XP/XPE, Windows 7
  Linux
Kernel 2.6 / 3.x
Back to Top
Approvals
  EMC
FCC Class A, CE Class A
  Environment
RoHS
Back to Top
Ordering Information
  Art.No
3860
  Product Name
RISE 5300
  Packing list
. RISE 5300 Embedded System
. Terminal blocks for Digital-I/O and Power supply
. CD-ROM with English documentation, drivers and tools
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
  * All the trademarks and brands are property of their rightful owners.
