(Replaced by USB-16COM Plus 232)

USB to 16x RS232 port (DB9, male)

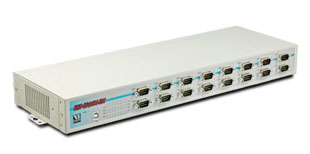

Vscom USB-16COM-RM, an USB to 16 x RS232 serial port converter DB9 connector, rackmount chassis
Ordering Information
Drivers & Documentation
Inquiry this product
View Larger Image

Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports.
The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.


  • Phased Out, no longer available
  • Metal case
  • Rackmount and DIN-Rail mountable
  • RS232 DB9 male ports
  • Speed up to 500 kbps
  • built-in power supply

Back to Top
Hardware Specifications
  Serial interface
16 x RS232
Connector 16 x DB9 male
Speed up to 500 kbps
Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  USB Interface
USB 2.0
Self powered
Built-in power supply 110-240V AC 47-63 Hz, 25VA
Windows 2000 to Windows 10 (x86 and x64)
Windows Server 2000 to 2012 (x86 and x64)
Linux (Kernel 2.6 built-in, 2.4 available)
Back to Top
Ordering Information
  Part Number
  Product Name
  Packing list
VScom USB-16COM-RM Adapter
USB cable 0,9m
Power cord
  Optional Accessories
9PF-9PF RS232 Null-Modem adapter, change male to female
429×147×44 mm³ (W×L×H)
451×152×44 mm³ with DB9 connector and ears
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.
  * Specifications are subject to change without notice.
  * All the trademarks and brands are property of their rightful owners.
