Features |
- ARM9 166MHz
- 16MB SDRAM, 2MB Flash
- 1 x Serial Port UART 16C950 (128Byte FIFO, max 3.6Mbps)
- 10/100 Auto-MDI(X) Ethernet Interface
- IEEE 802.11b/g Wireless LAN (WEP/WPA)
- Compact, fanless, low Power
- µCLinux Distribution with gcc-toolchain
- FTP upload of applications
- RedBoot Boot-Partition
- DIN-Rail mountable
|
Back to Top |
Specifications |
Hardware |
Processor |
ARM 9 166 MHz |
Memory |
16MB SDRAM, 2MB Flash |
UART Controller |
16C950C (128Byte FIFO) or compatible |
Connector type |
SMA-Reverse for WLAN antenna
RJ45 for Ethernet DSUB 9 male for serial Port |
Back to Top |
Interface |
LAN Interface |
10baseT/100baseTX Autodetect and Auto-MDI(X) |
WLAN Interface |
IEEE 802.11b/g RaLink card (RT2560) with WEP and WPA protection
|
Serial interface |
RS232/422/485 |
No. of port |
1, Speed up to 3.6 Mbps |
Available Modes |
RS232 full duplex RS422 full duplex RS485 4 wire, full duplex RS485 2 wire, half duplex, with echo RS485 2 wire, half duplex, without echo |
Signals |
RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND RS422: Tx+/-, Rx+/-, GND RS485 2 wire: Data+/-, GND RS485 4 wire: Tx+/-, Rx+/-, GND |
RS485 Data Control |
Controlled by ART (Automatic Receive Transmit control) or RTS |
Speed |
RS232: up to 921.6 kbps RS422/485: up to 3.6 Mbps |
Digital I/O |
3 internal signals @ 3.3V level |
Back to Top |
Software Configuration |
Bootloader |
RedBoot™ Bootloader resides in write-protected partition. You can work directly with RedBoot, using a Service-Board with console port |
Filesystem |
CramFS (Compressed ROM File System) for applications and libraries JFFS2 (Journalling Flash File System Ver2) for configuration and data storage |
Operating System |
GPL Linux Distribution µClinux with Kernel 2.4 Includes many very small applications that satisfy most of user tasks. |
Daemons |
4 x Dip Switch can be read by application |
Development |
Application and Kernel compilation is done with cross-compiler (gnu-compiler toolchain on CD-ROM) |
Tools |
There are several example programs |
Special Features |
RS485 Direction |
ART (Automatic Receive Transmit control) for RS485 |
User Settings |
4 x Dip Switch can be read by application |
WLAN Security |
WEP |
64/128 bit encryption |
WPA |
WPA-PSK/TKIP |
Back to Top |
Power and Environment |
Power requirements |
9 - 30V DC input, 500mA @ 12V
|
Power supply Adapter |
12V, 1000mA, connected by Terminal block |
Dimensions |
73 x 115 x 27 mm (W × L × H)
101 x 121 x 27 mm (W × L × H) with DB9 connector and DIN-Rail mounting kit |
Operating Temp. |
0°C - 60°C |
Storage Temp. |
-20°C - 85°C |
Case |
SECC sheet metal |
Weight |
0.2Kg |
Back to Top |
Approvals |
EMC |
FCC Class A, CE Class A |
Environment |
RoHS |
Back to Top |
Ordering Information |
Art.No |
693 |
Product Name |

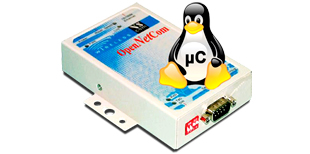

OpenNetCom 123 |
Packing list |
. OpenNetCom 123
. WLAN antenna
. Power supply adapter 12V, 1000mA
. CD-ROM: images, sources, tools
. English documentation
|
Optional Accessories |
. DK 35A - DIN-Rail mounting kit
. Service Board - Console Port, Diagnostic LEDs, 20pin JTAG Connector
|
