Features |
- Controls 1 Modbus line located virtually anywhere via Ethernet or Internet
- LAN interface 10BaseT/100BaseTx Ethernet
- Configuration over WEB Browser
- Supports Modbus Master Multiplexing
- Supports TCP/IP, DHCP, ICMP, HTTP, DNS
- Supports ART (Automatic Receive Transmit control)
- RS232/422/485 interface selectable by Software
|
Back to Top |
Specifications |
Hardware |
Processor |
ARM 9 166 MHz |
I/O controller |
16C950 or compatible |
Memory |
16MB SDRAM, 2 MB Flash |
Connector type |
DSUB 9 male for serial Port RJ45 for Ethernet |
Back to Top |
Interface |
Ethernet interface |
Auto-detecting 10BaseT/100BaseTx
|
Protocols |
TCP/IP, DHCP, ICMP, HTTP, DNS
|
Serial interface |
RS232/422/485 selected by software
|
No. of port |
1, Speed up to 115200 bps |
Available Modes |
RS232 full duplex RS422 full duplex RS485 4 wire, full duplex RS485 2 wire, half duplex, with echo RS485 2 wire, half duplex, without echo |
Signals |
RS232 : TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND RS422 : Tx+/-, Rx+/-, GND RS485 2 wire : Data+/-, GND RS485 4 wire : Tx+/-, Rx+/-, GND |
RS485 Data control |
Controlled by ART (Automatic Receive Transmit control) |
Back to Top |
Performance |
Speed |
Up to 115200 bps |
Parity |
None, even, odd |
Data bits |
7, 8 |
Stop bits |
1, 2 |
IRQ |
None |
I/O address |
None |
Back to Top |
Operating Modes |
Modbus RTU/ASCII |
Modbus RTU or Modbus ASCII protocol selected for each serial port individually |
DirectMappingMode |
Direct mapping of Modbus addresses to serial ports or TCP connections |
PromiscousMode |
Mapping of serial ports to TCP connections |
Back to Top |
Special Features |
Installation |
Dip switches set a defined temporary IP Address to contact via WEB Browser |
Operating Mode |
Promiscous Mode
- Messages received from the network are sent to the serial port, messages from the serial port are sent to the connected network host.
Mapped Mode
- Received messages are scanned for their target address. This address is found in a table, the message is sent to the defined connection (serial or TCP).
|
Modbus Master Multiplexing |
An extension to the standard. Slaves on serial lines may answer requests from multiple masters. The masters connect to ModGate 113 by Modbus/TCP. |
Configuration |
Configuration over WEB Browser
|
ART |
Automatic Receive Transmit control for RS485 |
DNS |
Domain Name Server support |
Serial Interface |
Serial Interface configurable by software |
Firmware |
Firmware update over WEB Browser
|
LEDs |
LEDs for Power, serial Tx, Rx, Ethernet Link, Speed |
Back to Top |
Security |
Password access |
Webinterface is password protected. The password can be changed in the Webinterface. |
Back to Top |
Power and Environment |
Power requirements |
9 - 30V DC, 500mA @ 12V |
Power supply Adapter |
12V DC, 1A connected by terminal Block |
Dimensions |
73 x 115 x 27 mm (W×L×H) 101 x 121 x 27 mm (W×L×H) with DB9 connector and DIN rail mounting kit |
Operating Temp. |
0°C - 55°C |
Storage Temp. |
-20°C - 85°C |
Case |
SECC sheet metal (1mm) |
Weight |
0.2Kg |
Back to Top |
Approvals |
EMC |
FCC Class A, CE Class A |
Environment |
RoHS |
Back to Top |
Ordering Information |
Art.No |
6700 |
Product Name |

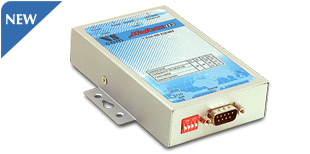

ModGate 113 |
Packing list |
. ModGate 113
. Power supply adapter 12V, 1000mA
. CD-ROM with user manual
|
Optional Accessories |
. DK 35A - DIN-Rail mounting kit
|
