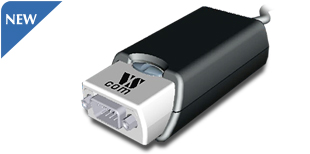

The VScom USB-CAN P is an adapter from USB to CAN. It connects a PC via the USB interface to the CAN bus. Since current computers all have several USB ports, the installation is simple. Even the previous standard of USB 1.1 with 12 Mbit/s max. speed is sufficient to connect the VScom USB-CAN P to a computer.

CAN bus is widely used in industrial applications as well as in automotive monitoring and control. The VScom USB-CAN P can be used to monitor the data traffic in such installations, as well as sending control information. The performance of VScom USB-CAN P is among the best available in the market of CAN-on-USB products.

Since hardware-based automatic flow control is implemented at the interface between the CAN controller and the PC, the data reliability is very high.

• The ASCII conversion protocol is useful in developing and testing any configuration. Users just open the serial port via a Terminal Program, and have a simple way to talk to the CAN controller. The same way they can also transmit and receive CAN frames.

• Applications programmed by users load the library (DLL), which transparently handles the ASCII conversion. Programmers handle only the CAN frames and status, they do not have to care about the ASCII conversion in their applications.

• USB-CAN P also supports CANFestival, an Open Source CANopen Framework. CANopen is a CAN-based higher layer protocol that is used in various application fields, such as medical equipment, offroad vehicles, maritime electronics, railway applications or building automation. CANopen unburdens the developer from dealing with CAN-specific details such as bit-timing and implementation-specific functions. It provides standardized communication objects for real-time data, configuration data as well as network management data.

• CANHacker, a tool for analyzing and transmitting frames on the CAN BUS, is included in the product package.

• A set of Mapper DLLs simulates CAN hardware from other manufacturers. Users configure their system for those products or the USB-CAN P adapter as a replacement. So existing software will use the USB-CAN P without replacing the application or modifying it.

More information about CAN Bus Product line.
Features

  • Connects a PC to CAN bus via USB
  • Supports CAN 2.0A and CAN 2.0B
  • CAN High Speed up to 1 MBit/s
  • Remote Frame support, Listen only mode
  • Supports Windows 2000 to Server 2008 R2, CE
  • Supports Linux kernel 2.4.32+
  • Supports C/C++, C#, VB.NET, Delphi and LabVIEW
  • CANopen supported by CANFestival
  • USB 2.0 Full Speed, powered by USB
  • Driver emulates serial port for easy access
  • Library (DLL) for standard access
  • ASCII conversion protocol via serial port
  • Supports Bosch Busmaster Debugging
  • Plastic case

Back to Top
Specifications
CAN
  Speed
CAN High Speed (20kbit/s up to 1Mbit/s) for transmit/receive
  Signals
CAN_H, CAN_L, CAN_GND, CAN_V+, GND
  Controller
SJA1000 (Philips)
  Transceiver
TJA1050 (Philips)
  LED
CAN Activity (Data)
CAN Error
  Connector
DB9 male
Back to Top
USB
  Interface
USB 2.0 Full Speed
  Power
USB Bus powered, max. 200 mA
  Driver
Emulated serial port, 3 Mbit/s
  Operating Systems
Windows 2000 up to Windows 8
Windows Server 2000 up to 2008 R2
Linux kernel 2.4.32+
Mac OS X support available
  LED
CAN Data, CAN Error
  Connector
USB Type B socket
Back to Top
Driver and software
  Library
Unified API for simple access on all Vscom CAN products
Supports Windows, CE, Linux (x86, x86-64, ARM) targets
Supports C/C++, C#, VB.NET, Delphi and LabVIEW
  Compatibility
Mapper DLLs can simulate software interfaces of CAN adapters from other manufacturers.
  CANFestival
CANopen examples showing Master/slave communication
  Speed
CAN Speed selectable up to 1 Mbit/s
  Transfer
ASCII coding mode
  CAN Mode
Standard Mode : Normal operation on CAN Bus
Listen Mode : Passive receive of CAN Frames, neither ACK bits nor Error Frames are sent
Self Reception (Echo Mode) - For testing: Transmitted Frames are also received by the adapter
  Monitoring Tool
VScom USB-CAN P is supported by Bosch BUSMASTER
VScom USB-CAN P is supported by CANHacker
Back to Top
Power and Environment
  Power
Max. 1W
  Power supply
max. 250mA via USB port
  Dimensions
45 x 85 x 26 mm³ ( W x L x H )
  Operating Temp.
0°C - 60°C
  Storage Temp.
-20°C - 85°C
  Case
Molded Plastic
  Weight
40g
Back to Top
Approvals
  EMC
FCC Class A, CE Class A
  Environment
RoHS
Back to Top
Ordering Information
  Art.No
425
  Product Name
USB-CAN P
  Packing list
. USB-CAN P
. High-Speed USB cable integrated
. English Documentation
